MoPac: Austin Sub

2188 views
14 replies
1 rating 2 rating 3 rating 4 rating 5 rating
  • Member since
    April 2003
  • 305,206 posts
MoPac: Austin Sub
Posted by Anonymous on Saturday, July 23, 2005 9:38 AM
I'm interested in modeling the Mopac in or around Austin, TX. I'm looking at the 1940's-50's Names & locations of industries would be nice, as would any additional info.
  • Member since
    September 2003
  • From: Omaha, NE
  • 10,391 posts
Posted by dehusman on Saturday, July 23, 2005 1:29 PM
Just for your information, it would be the MoP in the 1940's (or maybe the IGN, or Ginnie). MoPac is a creation of the 1970's.

I'll see what I can find.

Dave H.

Dave H. Painted side goes up. My website : wnbranch.com

  • Member since
    August 2002
  • From: Corpus Christi, Texas
  • 2,377 posts
Posted by leighant on Sunday, July 24, 2005 9:00 PM
It is not 1940-50, but "somewhere", I have a Southern Pacific tariff dated 1972 of industries on railroads at points served by SP and at least one other line. Austin fits in that category with SP and MP. By city, the tariff lists the industries, what commodities are handled and which railroad serves it.

The tariff apparently allowed an agent who got a call about an industry to tell whether or not that company was on his line.

I couldn't find the tariff in a 5 minute search of my railroad library. This gives me an excuse to clean and organize.

Another source might be Sanborn's Insurance maps. If I am still eligible as a university student (I am between semesters but registered for fall) I can go online to our university library and access Sanborn's maps for Texas.

Maybe I'd better not try that now. My astrologer said I should not start anything between 7PM tonight and 9AM tomorrow that cannot be finished in that time or it will never get finished. On the other hand, maybe that means I should go ahead and get finished hunting for your stuff.......
  • Member since
    August 2002
  • From: Corpus Christi, Texas
  • 2,377 posts
Posted by leighant on Sunday, July 24, 2005 10:02 PM
From Sanborn’s maps, from 1935 base maps updated to ca. 1960…

Two main areas-- one near MoPac Station...

City of Austin material yard just north of small yard at wye, north end of Colorado River bridge

Travis Materials Inc. ready-mixed concrete, southwest of west leg of wye, on its own spur

City of Austin Power and Light plant, southeast of east leg of wye, spur to plant from east end

commercial bakery (name not given), north of track and west of Lamar (at underpass), on spur that CROSSES another spur which goes to unidentified building at west end of block (east side of Baylor Street)

MPRR station south of tracks, west side of Baylor Street

Tips Iron and Steel Co, machine shop, foundry, etc north of tracks, west side of Baylor Street, has own spur that runs THROUGH inside of one building, stub extends out.

unnamed Planing mill, 1419 W. 3rd St. on own spur south side of tracks.

paper warehouse, north of tracks, west of Paul Street, has own spur

contractor’s material yard, just west of paper warehouse (on same spur?)

Austex Foods warehouse, just west of Nueces St and south of east-west tracks (I think the tracks at this point belong to someone other than MP but not sure) has own spur from the east.

Calcasieu Lumber Co., north of (east-west) track, west of Nueces. spurs?? or old removed spur?

Other industrial switching are where Bergstrom AFB branch cuts off from main line, what used to be way south side of Austin...

Ward Body Works, bus body mftg. on spur, SW side of Bergstrom line, 1 block SW of Ben White Blvd., just southeast of South Congress

Texas State Library, along spur, SW side of Bergstrom line, 1 block SW of Ben White Blvd.

Montgomery Ward merchandise warehouse, on spur, SW side of Bergstrom line, 1 block SW of Ben White Blvd.

Hoffman Paint Mfg. Co. on spur, SW side of Bergstrom line, 1 block SW of Ben White Blvd.

Imperial-American Inc. aluminum furniture factory. northeast of Industrial Blvd, south east of William Springs Road. not sure if rail served… industrial switch lead curves apparently through their property to access businesses further southwest on Willow Springs Road.

Restaurant Eqpt Mfg. west corner of Industrial Blvd and Willow Springs. lead passes their business, not sure if rail-served.

Austin Industries furniture factory, on own spur at end of Willow Springs lead.

Lone Star Paper Co. wholesale paper warehouse, on own spur at end of Willow Springs lead.

Hope this helps. More if I can find it...
  • Member since
    August 2002
  • From: Corpus Christi, Texas
  • 2,377 posts
Posted by leighant on Sunday, July 24, 2005 10:58 PM
Austin industries served by MP per Southern Pacific Transportation Co. Freight Tariff 1517-F,
issued June 11, 1973

Austin Statesman newspaper
Austin, City of general storage yard
Austin Paper Co. paper and paper products
Austin Transit Inc. street buses
Bradford Paint Co. paint, wall paper
Calcasieu Lumber Co. lumber
Fulford Appliance appliances
Graybar Electric Co. electric supplies
Kash & Karry Grocery groceries
Midwest Roof Deck & Supply roofing
Miller Hofstetter Co groceries
Milstead Co. wholesale plumbing
Southwestern Ice & Cold Storage ice plant
Tips Company wholesale hardware
Tips Iron and Steel machine shop & foundry
Travis Materials ready mix concrete

To find the locations of these industries, you might look in a 1973 telephone directory or "criss-cross" directory. You might find these at your main downtown Austin city library in their local history research room.


Austin businesses with no spur served by team track

Abel Stationers
Academy Super Surplus Sales
Acme Fence Co.
Acme Roofing
American Moving and Storage Co.
American Radiator and Standard Sanitary Co.
Amstan Supply Co.
Austin Builders Supply Co.
Austin Concrete Works
Austin Lumber Co.
Austin Material & Iron
Austin Plumbing Supply Co
Bland Joe Construction Co.
Bledsoe Furniture Co
Boyer J M contractor
Cabiness Brown (furniture)
Capital Casket Co.
Capitol Aggregates
Capitol Feed & Milling Co
Central Feed Co
Cross Allen Co (auto parts)
East Produce Co.
Eli Witt Cigar Co.
Fairey, Tom (farm implements)
G&D Produce Co
Hillcrest Dairies
Howard S. Montopolis nurseries
International Harvester Co.
Janes Bar Nothing Ranch
K&M Supply Co (plumbing supplies)
L & A Mill & Supply Co.
Lanford Equipment Co. (road machinery)
Little H E Co. (roofing)
Lone Star Sales Co. (beer)
Lower Colorado River Authority (rural electrification)
McKay Jack Lumber Co
Montgomery Ward & Co.
Montopolis Supply Co.
Murphy Murphy Transit Construction
Precast Concrete Products Co
Rhoades Transfer & storage
Richards H Oil Co.
Royal Crown Bottling Co.
Safeway Farm products (insecticide)
Safeway stores
Sanders Cash Lumber Co
Seven Up Bottling Co
Smith Stone Co.
South Austin Lumber Co.
Southern Electric Supply Co
Summer-Austin Electric Supply Co
Superior Dairies
Swift & Co.
Texas Industrial Laundries
Texas Lumber Co.
Thomas Bros. Construction Co.
Whites Stores Inc (auto supplies & furniture)
Willard Mfg Co (luggage)

See a few names that are too silly to be real? But they are (were) real.
Does this begin to answer your question?

Thanks for giving me the motivation to go on a tour of Austin railroad spurs ca. 1950 in the Sanborn's maps.
  • Member since
    April 2003
  • 305,206 posts
Posted by Anonymous on Wednesday, July 27, 2005 11:32 AM
Wow. This is amazing. Thank you. All more that I can ask is how did you retrieve this information? Also, would you happen to have a map of these areas with the track plans? If I have to I might be able to go into Austin to find them, but a map would be very nice.
  • Member since
    August 2002
  • From: Corpus Christi, Texas
  • 2,377 posts
Posted by leighant on Wednesday, July 27, 2005 3:18 PM
What I got was far better than what you usually think of as a map. I got Sanburn's Insurance Fire Credit Ratings maps, which generally show the insured/ built-up areas of a city at 10 to 15 years intervals from 1890 to 1950 or thereabouts, at 1" on the drawing equal to 50 feet prototype. In other words, the map of YOUR HOUSE would be about an inch across showing the outline of the building, type of wall and roof construction, roofline, height of the building. For about 75 percent of a city. For about 100 too 500 cities in Texas, from my quick look at the pull-down menu.

A little bit less than a construction drawing. A lot more than most maps.

I was able to look at the Sanborn's collection online from my home computer because I am a registered student at a public Texas university. I am able to get ONLY the maps for Texas cities, and only up to about 1950. The physical books were about a foot and a half square. I got to see and handle one for Corpus Christi at the local history room of my local public library 30 years ago when a model group built a model of the Texas Mexican Rwy as it was in 1926, about 8 blocks long and a block or so on each sides of the tracks.

The local history room also had 1926 City criss-cross directories, as used by bill collectors, sales agents, private detectives etc which list street addresses, number by number and give the occupant. Then you can go to the "name" part of the directory and see how many people lived there, names of occupants over 18, number of children under 18 and where people were employed. Look up a business name and see names of the owners and managers, etc.

(For a history research project I did involving Corpus Christi in the 1930s, the city criss-cross directory even gave an ethnic characterization for each family, with the no-longer politically-correct indicators "C" for "colored", "M" for "Mexican" and "EM" for "English-speaking Mexican." But that is another issue...)

In calling up Sanborn's maps, it took me about a minute for each screen-sized portion of a map, covering about a city block, to load. If I wanted to recenter or look an inch to the right or left, took another minute or so to reload. Took some time. YES, the Sanborn's maps generally include track plans but they were not fastidious about keeping them up to date because tracks were usually not covered by fire insurance. Sometimes a spur will be shown alongside a property but stop abruptly without connection to the main line. Or a line will be shown on one map and the area left blank on the adjacent map and then pick up again on the next map.

I could not copy maps and send you a copy because I do not have permission- and access to the electonic resources at the university library is password protected. I have to give them my social security number to get in.

I have copied some maps and plats from that source for my own modeling, including a very rough plat of the Roller Coaster that used to be near the Galveston beach I want to model-- at least the plat gave me the overall footprint dimensions of the coaster.
(my mockup)
http://www.railimages.com/albums/kennethanthony/acv.jpg
http://www.railimages.com/albums/kennethanthony/acw.jpg
http://www.railimages.com/albums/kennethanthony/acx.jpg



plus lots of other information for my planned Galveston layout.
http://www.railimages.com/albums/kennethanthony/ael.jpg



  • Member since
    April 2003
  • 305,206 posts
Posted by Anonymous on Thursday, July 28, 2005 3:35 PM
QUOTE: Originally posted by dehusman

Just for your information, it would be the MoP in the 1940's (or maybe the IGN, or Ginnie). MoPac is a creation of the 1970's.

I'll see what I can find.

Dave H.


Please explain what the above means. Aren't MoP and MoPac both shorthand for Missouri Pacific? I certainly head the MoPac phrase earlier than the 1970s.

Ed
  • Member since
    September 2003
  • From: Omaha, NE
  • 10,391 posts
Posted by dehusman on Thursday, July 28, 2005 7:17 PM
MoPac wasn't used as an official designation by the railroad until the 70's.

It was called the "Mop" because the steam engines that belonged to the Missouri Pacific (as opposed to the IGN or MI or StLBM) were stenciled "MoP" on the sandbox.

Dave H.

Dave H. Painted side goes up. My website : wnbranch.com

  • Member since
    January 2002
  • From: mid US
  • 15 posts
Posted by bwisch on Saturday, September 16, 2006 10:56 AM
I'm not sure about the Steam engines but I worked for the Missouri pacific Railroad from 1956 to 1966 mostly it was calledm the MPL or MOP or MoPac.  Much of the tools ,oilcans etc were marked MoPac Lines.  I was wondering were you got your information?  Also in Texas it was known as the (T&P)Texas and Pacific.
  • Member since
    August 2002
  • From: Corpus Christi, Texas
  • 2,377 posts
Posted by leighant on Sunday, September 17, 2006 3:06 PM

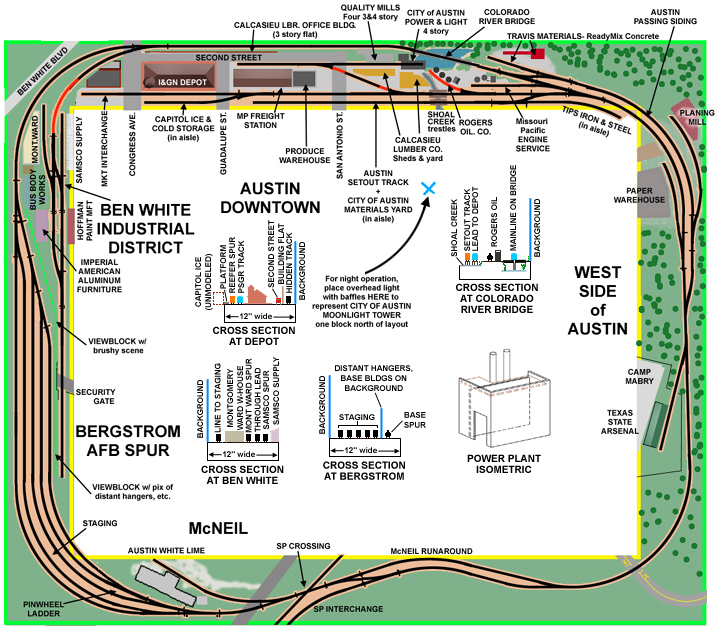

For anybody that hasn't seen it (has been posted before various places) , here is a room-sized N scale layout plan for the Missouri Pacific in Austin ca. 1950...

http://www.trainboard.com/railimages/data/552/AusLay720.JPG



  • Member since
    July 2006
  • From: Wylie, TX
  • 238 posts
Posted by SqueakyWheels on Sunday, September 24, 2006 12:08 AM
Missouri Pacific actually was started in the latter half of the 1800s. And, unlike it's rival, and now owner- Union Pacific, it was privately funded. The rails started out in St. Louis, and ran out to the Pacific coast- hence the name. Union Pacific was governemt funded, and it and Mopac merged in 1974.
Tim _______________________________ Our Father is MY PILOT!!!!
  • Member since
    September 2003
  • From: Omaha, NE
  • 10,391 posts
Posted by dehusman on Sunday, September 24, 2006 12:05 PM

 SqueakyWheels wrote:
Missouri Pacific actually was started in the latter half of the 1800s. And, unlike it's rival, and now owner- Union Pacific, it was privately funded. The rails started out in St. Louis, and ran out to the Pacific coast- hence the name. Union Pacific was governemt funded, and it and Mopac merged in 1974.

Actually most of the railroads in the midwest took advantage of the "land grant" opportunity.  The first railroad to use it was actually the Illinois Central.

The Missouri Pacific never went to the Pacific.  The furthest west it went was to Avondale, CO (and then over the ATSF into Pueblo).

Dave H.

Dave H. Painted side goes up. My website : wnbranch.com

  • Member since
    July 2006
  • From: Wylie, TX
  • 238 posts
Posted by SqueakyWheels on Sunday, September 24, 2006 9:43 PM
 dehusman wrote:

 SqueakyWheels wrote:
Missouri Pacific actually was started in the latter half of the 1800s. And, unlike it's rival, and now owner- Union Pacific, it was privately funded. The rails started out in St. Louis, and ran out to the Pacific coast- hence the name. Union Pacific was governemt funded, and it and Mopac merged in 1974.

Actually most of the railroads in the midwest took advantage of the "land grant" opportunity.  The first railroad to use it was actually the Illinois Central.

The Missouri Pacific never went to the Pacific.  The furthest west it went was to Avondale, CO (and then over the ATSF into Pueblo).

Dave H.



I agree about the land grant, but these railroads still needed money for the manpower and materials, and this was something Mopac had trouble acquiring. They almost gave up a couple of times, and probably gave up in Avondale.

Over the years Mopac became huge, snapping up company, after company. They say that Mopac was actually larger equipment wise than UP when they merged.

Now it seems that UP owns darn near everything west of the Mississippi river. Where I live here in Texas, both UP and BNSF rumble down the same tracks that run by my house, and it makes you wonder if they aren't a conglomerate as well. Earlier today I saw a UP dragging a KCS MU behind it with about 20 cars mixed freight.

It will be sad when yellow jackets and pumpkins are the only trains we see.
Tim _______________________________ Our Father is MY PILOT!!!!
  • Member since
    January 2002
  • From: mid US
  • 15 posts
Posted by bwisch on Monday, September 25, 2006 11:55 AM

I don't recall going through Avondale it must have been after the UP took over and MP tracks were abandoned.  Boone was the last station before Pueblo and from Pueblo the "Colorado Eagles" ran through Colorado Springs to Denver on the D&RGW tracks.  Went there several times on weekends.  Worked there in late 50's.  Mp got to Pueblo in 1887 and had a terminal there
