2-4-0 from a 2020 LGB engine

1249 views
7 replies
1 rating 2 rating 3 rating 4 rating 5 rating
  • Member since
    February, 2015
  • From: Ormond Beach, FL
  • 226 posts
2-4-0 from a 2020 LGB engine
Posted by chocho willy on Tuesday, April 10, 2018 12:11 PM

   Conversion started with removing water tanks from engine cab and replacing with doors, removing side parts off motor housing, replacing cab roof with Kalamazoo roof. Kept original boiler but cut smoke box off and made new one with PVC pipe adding rivet detail using plastic rivets from eBay. Made sand dome and steam dome from PVC fittings. Boiler railings are 1/16" brass hobby wire held off the boiler using the crushable part of a pop rivet and cotter pins, front smoke box grab bar is same. Smoke box front is made from plastic hole plugs. Front # medallion is the poppet from a dental valve and the boiler maker plates are brass rivets bottom out. Cylinders were capped with dental bit package tops and rivet detail was added to look more like Stevenson valves. Added walk ways around the engine using strip styrene and small paper clips with styrene for the air cooling piping. Cow catcher is scratch built using plastruct pieces. Coupler release is held in place using same cotter pin, pop rivet parts that I used on the boiler, and is made using piano wire bent to the proper configuration. Capped it off with a Kadee G scale coupler. Used a aristo craft 2-4-2 Rogers front pilot mainly because it had sprung wheel which helps keep the wheels on the track + it has electrical pickups.
    Being as this was suppose to be an old logging engine I opted for the older steam engine look, flared stack which is from a dental tubing retaining fitting. Not sure what brand the bell and light are from but they looked old and might have come from the Kalamazoo roof engine. In the engine there is a voltage reducer board supplying 5vdc to the smoke unit and 2vdc to both the red/yellow flickering LED's lights in the firebox and the headlight LED. Sand dome pull bar is brass wire and the bell rope is twisted electrical wire. Parts on top of the steam dome are just that, what ever I had that looked right. Krylon spray paint was used to color major parts and weathering using acrylics brush on. Lettering was done with a Cameo silhouette. Logging company name is pronounced in southern redneck slang, hint the P.T. stands for pressure treated, sound it out.

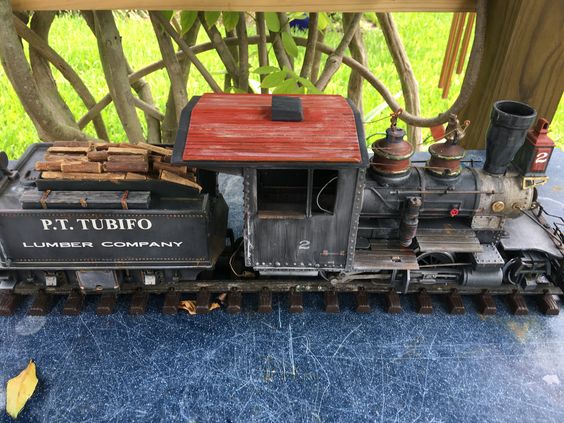

    2-4-0 left side w/tender2-4-0 right side2-4-0 side pix2-4-0 at water tankfront pilotThe tender is an LGB powered unit and along with the engine having front pilot, drivers and skates pickups tethered electrically to the engine gives over 17" of electrical contact with the rails, it will run on pretty dirty track and pull a bunch of cars. Opted for a wood burner (what else would a lumber Co use), so I replaced the coal load with twigs (logs) same ones I used for my pulpwood car. The tender has an older chuff unit in it something I had form the late 70's. I have build a complete train around this combo which includes 2 log cars, water tank car, pulpwood (favorite) car and work caboose. In the works is a flat car with a WWII bulldozer on it. Fun train and will pretty much go anywhere. Bill......previously posted on GSC

  • Member since
    February, 2004
  • From: North, San Diego Co., CA
  • 3,092 posts
Posted by ttrigg on Wednesday, April 11, 2018 4:16 AM

Nice job. Thumbs Up

Tom Trigg

  • Member since
    February, 2015
  • From: Ormond Beach, FL
  • 226 posts
Posted by chocho willy on Wednesday, April 11, 2018 2:36 PM

Thanks Tom

  • Member since
    December, 2001
  • From: Smoggy L.A.
  • 10,698 posts
Posted by vsmith on Thursday, April 12, 2018 4:57 PM
That came out really nice!

   Have fun with your trains

  • Member since
    February, 2004
  • From: North, San Diego Co., CA
  • 3,092 posts
Posted by ttrigg on Saturday, April 14, 2018 6:40 AM

I took a third look to check your weathering and was pleasantly shocked when I reaized not so much 'dirty' but aged. Most execellent job. Very impressive.

Tom Trigg

  • Member since
    February, 2013
  • 421 posts
Posted by PVT Kanaka on Sunday, April 15, 2018 12:22 AM

Tom,

To accomplish a "'bash" like this is the work of a craftsman; to see this locomotive in the hull of a "Stainz" is the work of an artist.  Great and inspiring job!



Eric

  • Member since
    February, 2015
  • From: Ormond Beach, FL
  • 226 posts
Posted by chocho willy on Sunday, April 15, 2018 11:45 AM

Eric, you're just saying that cause yoyr engine is bigger than mine!!!!!!!!!!!!!!!LOL

Tags: big engine
  • Member since
    February, 2015
  • From: Ormond Beach, FL
  • 226 posts
Posted by chocho willy on Sunday, April 15, 2018 11:46 AM

Thanks, I appreaciate the comment, I won't say that I've never painted over grime to get a crusty look though, Bill

Tags: crusty
