Chain link fences
Posted by Antoine L. on Wednesday, May 14, 2014 2:44 PM

Argh!

I kind of tried almost everything. Solder screen to nails, brass rods, styrene posts, the Busch kit, mesh from IKEA. It's always a mess,

I am desperate and in need of advice to build those. The Walthers kit isn't available in loca store, nothing on ebay canada. Me no want import fees. I am losing my grammar over this.

Pictures are welcome so I can appreciate the gain of knowledge.



Thank you!



Antoine

  • Member since
    December 2004
  • From: Bedford, MA, USA
  • 20,511 posts
Posted by MisterBeasley on Wednesday, May 14, 2014 2:57 PM

I have the Walthers fence, but the basic material is a fabric called Tulle.  You can get it at a craft shop or bridal shop.  (It's the stuff they make veils out of.)

You can use brass wire, glued or soldered, for the frame.  Then cut a strip of Tulle and glue it to the frame using CA.  Cut it larger than you need at first.  It's easy to trim with scissors after it's glued.

I spray it first with silver rattle-can paint, and then apply dull-coat to weather it.



It takes an iron man to play with a toy iron horse.

  • Member since
    November 2002
  • From: US
  • 2,455 posts
Posted by wp8thsub on Wednesday, May 14, 2014 3:00 PM

There are several manufacturers of nice chain link fence.  Micron Art http://www.walthers.com/exec/productinfo/462-93405 and Micro Structures http://www.walthers.com/exec/productinfo/502-87985 have etched fences that may work.  These have the advantage of not relying on separate parts for the posts, rails and chain link - the whole thing is etched out of one piece.

I built this fence from an old Allow Forms kit, now offered by Scale Structures http://www.walthers.com/exec/productinfo/650-4128 .  It has brass posts and metal mesh.  The gates are one-piece castings to which you add the mesh.

Rob Spangler

  • Member since
    July 2006
  • From: upstate NY
  • 9,236 posts
Posted by galaxy on Wednesday, May 14, 2014 3:09 PM

The Tulle Mr. B alludes to is found here,for  example, and comes in a "platinum" {gray} color:

http://www.joann.com/matte-tulle/zprd_10449056a.html#q=tulle&start=1

It is the "netting" used for wedding veils, for wrapping wedding take-home gifts or baby showers, or other craft uses.

It is used by many with great success by many modelers, and does look good for chain-link fence, and is far cheaper than the model chain link fence kits available for modeling...

Geeked



-G .

Just my thoughts, ideas, opinions and experiences. Others may vary.

 HO and N Scale.

After long and careful thought, they have convinced me. I have come to the conclusion that they are right. The aliens did it.

  • Member since
    December 2004
  • From: Bedford, MA, USA
  • 20,511 posts
Posted by MisterBeasley on Wednesday, May 14, 2014 3:17 PM

I will add that I had a lot of trouble building the Walthers kit.  The vertical posts and gates are plastic, but the horizontal top and bottom pieces are metal.  So, it needs to be assembled with CA.  I built a jig with holes for the posts to get the frame assembled, but it was still a frustrating job as it kept coming apart unless I overloaded it with glue, which can still be seen in my photos.

The next time, I'll used soldered brass wire.

It takes an iron man to play with a toy iron horse.

  • Member since
    November 2007
  • From: California
  • 1,949 posts
Posted by HO-Velo on Wednesday, May 14, 2014 5:44 PM

Antoine,

I did some web research and then experimented making some chainlink fence in HO scale last week.  Soldering skills and a steady hand are needed.  Made a wooden jig to hold the posts and bits of masking tape to hold the posts & stringers to the jig for soldering. .0284 brass wire for the posts & .0179 for the stringers.

The chainlink material is 790 Micron nylon mesh, stiffer than tulle, but still plenty flexible and can be attached to the brass wire with CA glue.  It is a bit tricky cutting the mesh, I clamped a machinist combination set metal rule over the mesh and cut it with a razor blade.  A 1/4 yard of the mesh was around $10.00 if I remember correctly and that'll make a lot of fence.

I've yet to paint this test piece and sorry for the photo quality, used my computer camera as my digital camera bit the dust this A.M.

regards,  Peter



  • Member since
    May 2006
  • From: Brisbane, Australia
  • 784 posts
Posted by mikelhh on Wednesday, May 14, 2014 8:31 PM

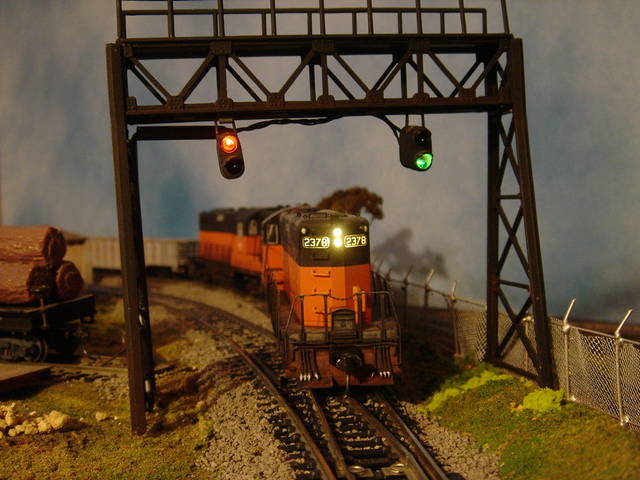

I use tulle and piano wire - heavy gauge for the posts and light gauge for the wire along the top [and sometimes along the bottom] I brush paint the tulle even if I don't want it to look rusty. Just a pale grey will do the job. I don't like the over-the-top shine of the metallic products.

Held together with super glue.



Mike

Modelling the UK in 00, and New England - MEC, B&M, D&H and Guilford - in H0

  • Member since
    May 2011
  • 743 posts
Posted by Steven S on Wednesday, May 14, 2014 9:07 PM

This is brass wire with tulle.  You'll need a fine tip for your soldering iron, and it helps to have a set of tiny files to clean up the joints.  The tulle is held in place with CA adhesive.

Steve

  • Member since
    February 2008
  • 7,937 posts
Posted by maxman on Wednesday, May 14, 2014 10:34 PM

Steven S

This is brass wire with tulle.  You'll need a fine tip for your soldering iron, and it helps to have a set of tiny files to clean up the joints.  The tulle is held in place with CA adhesive.

Steve



Very nice.

  • Member since
    May 2011
  • 743 posts
Posted by Steven S on Wednesday, May 14, 2014 10:44 PM

maxman
Very nice.

Grazie.

Also, MR once had an article (circa 1990s) about prototype fences.  They gave dimensions for the various sizes of posts.  For example, corner posts and end posts are thicker than the posts in between.  Does anyone remember when that article ran?



Steve S

  • Member since
    January 2010
  • From: Chi-Town
  • 7,660 posts
Posted by zstripe on Thursday, May 15, 2014 1:21 AM

Could not find the MR Article, but I did run across this that gives dimensions:

http://www.miamidade.gov/permits/library/drawings/fence-chain-link.pdf

Frank



  • Member since
    July 2006
  • From: upstate NY
  • 9,236 posts
Posted by galaxy on Thursday, May 15, 2014 3:35 AM

I forgot to add that if you search sites like joann.com for shipping or coupons, they usually have a sorta hidden coupon, in this case as listed above, if you click on the 'shipping' link in the top toolbar on that site, it will pop up for 40% off regular priced item online or in store, OR free shipping on orders over $50.

Places Like Micheal's crafts or AC Moore's crafts should also have tulle-in the bridal or floral Depts. and they often have 40% off coupons hidden on their websites. You might even find tulle on a ribbon spool that is already "cut to size" for  a scale fence!

Geeked

-G .

Just my thoughts, ideas, opinions and experiences. Others may vary.

 HO and N Scale.

After long and careful thought, they have convinced me. I have come to the conclusion that they are right. The aliens did it.

  • Member since
    January 2010
  • 49 posts
Posted by Software Tools on Thursday, May 15, 2014 6:33 AM

Steven S
MR once had an article (circa 1990s) about prototype fences

In the September 1980 issue, page 72.  There was also an article on improving the Walthers Chain Link Fence product in the April 2009 issue, page 74.

Cheers,

Bill

  • Member since
    July 2006
  • From: North Dakota
  • 9,124 posts
Posted by BroadwayLion on Thursday, May 15, 2014 7:04 AM

Tulleing right along, LION builded fence with tulle. It came out pretty good. Him usd straight pins for posts. It did not stick together too well, but I left it alone, as it lookes very typical for a chain link fnece in that part of Brooklyn.

ROAR

The Route of the Broadway Lion The Largest Subway Layout in North Dakota.

Here there be cats.                                LIONS with CAMERAS

  • Member since
    April 2014
  • 76 posts
Posted by Antoine L. on Thursday, May 15, 2014 8:12 AM

Wow thanks everyone for these advices. I'll try tulle of course. I guess my problem too is that I do not have CA glue, so I'll get some as well. Thanks a million!

Antoine

  • Member since
    May 2011
  • 743 posts
Posted by Steven S on Thursday, May 15, 2014 8:36 AM

In the September 1980 issue, page 72.  There was also an article on improving the Walthers Chain Link Fence product in the April 2009 issue, page 74.

Cheers,

Bill



The article I'm thinking of was all about prototype fences, rather than how to model them.  There were a lot of scale drawings showing the various types of gates: swing gates, rolling gates, and slide gates suspended from a truss.  It was a very extensive article.  Whoever wrote it put a lot of time and effort into it.



Steve S

  • Member since
    February 2008
  • 7,937 posts
Posted by maxman on Thursday, May 15, 2014 8:44 AM

Antoine L.
I'll try tulle of course. I guess my problem too is that I do not have CA glue, so I'll get some as well.

While you're at JoAnns looking for the tulle, you can get the CA there also.  Make sure you look for all the 40% and 50% off coupons before you go.

  • Member since
    January 2007
  • From: Kentucky
  • 10,660 posts
Posted by Heartland Division CB&Q on Friday, May 16, 2014 9:00 AM

I have a simplified chain link fence as the back fence in my scrap yard. It is a piece of common window screen glued to verticle posts which are wire brads.

The weeds, tall grass, and rusted vehicles make it hard to see the back fence. The front fence is a rusted iron fence.



GARRY

HEARTLAND DIVISION, CB&Q RR

EVERYWHERE LOST; WE HUSTLE OUR CABOOSE FOR YOU

  • Member since
    April 2003
  • From: Clinton, MO, US
  • 4,243 posts
Posted by Medina1128 on Saturday, May 17, 2014 4:27 AM

I built the chain link fence that came with the Cornerstone electric substation. I found that slightly enlarging the holes for the horizontal pieces made things A LOT easier to assemble. Then, I glued the mesh to the uprights with CA, cut oversize, then trimmed with scissors. A good source for tweezers and scissors was a hospital. If you happen to have a friend or family member with stitches, they use small scissors and mosquito forceps (small pointed tweezers) to remove them. They throw them away after each use, so just ask, and I'm sure they'll give them to you.



  • Member since
    March 2010
  • From: Clovis, CA and Chama, NM
  • 8 posts
Posted by SJ&S on Monday, December 21, 2015 3:22 PM

I know this almost two years late, but I don't come on here much.  If you have the right soldering tools, soldering wire mesh to metal framing [any kind] is easy.  I do a lot of art glass soldering so I use a Welker W100P soldering iron with a Mini Phaser heat control.  For metal I use a setting of about 90.  If you get these items, play around with the heat setting as desired.  I also use 50/50 [tin/lead] solder and flux [don't use this for electrical applications].  The key is to tim the area to be soldered then tack solder your pieces together.  Once done then go back over to do the finish soldering.  It should come out nicely.

Brooks
  • Member since
    February 2008
  • 1,911 posts
Posted by kasskaboose on Tuesday, December 22, 2015 7:45 AM

SJ&S

I know this almost two years late, but I don't come on here much.  If you have the right soldering tools, soldering wire mesh to metal framing [any kind] is easy.  I do a lot of art glass soldering so I use a Welker W100P soldering iron with a Mini Phaser heat control.  For metal I use a setting of about 90.  If you get these items, play around with the heat setting as desired.  I also use 50/50 [tin/lead] solder and flux [don't use this for electrical applications].  The key is to tim the area to be soldered then tack solder your pieces together.  Once done then go back over to do the finish soldering.  It should come out nicely.



My dad also does stained glass.  I can ask him how he uses the stuff and whether he has any extra.  The solder flux that Radio Shack sells is more than enough for most layouts.
